設備介紹

HX500DK-K多層高速打孔機,是我公司最新研發生產的一款新型打孔機,整機采用PLC和觸摸屏控制，具有自動糾偏和自動張力控制系統。機身采用了新式底座，在降低了機器高度的基礎上，使得機器操作更加方便、運轉更加平穩。機器在結構設計上突出了“操作方便“和“高速運轉更平穩”的理念，不僅在細節上改進增加了氣動壓刀、氣動壓膠輪等，更是采用了全新設計的“日本太陽機式”旋頁擺頁裝置，使出紙更順暢，可自動完成折頁。另外，整機還可選配封閉式除塵裝置，能極大的提高產品質量、降低環境污染。

PRODUCT INTRODUCTION

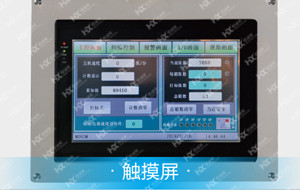

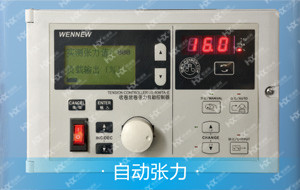

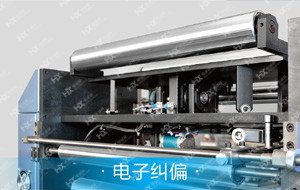

HX500DK-K high speed multi-layer perforating machine is the latest new type perforating machine that we developed. The whole machine is controlled by PLC and touch screen panel, equipped with automatic skew adjustment system and automatic tension control system. With the advantage of it’s new type base, HX500D-K is not only more compact on height, but also more user-friendly and operates more steadily. “Easy to operate” and “Steady operation under high speed” is highlighted during the RND of this machine. Perfection tune for every detail of the product, we revise and add the pneumatic pressure knife, pneumatic rubber wheel, etc., and even more, equipped with the lasted developed “Japanese sun-machine type” page turning & swing device, the output of paper is smoother, and folding of the paper can be done automatically. Seal type dust removing device is optional for the better operation of the machine and reducing environmental pollution.
